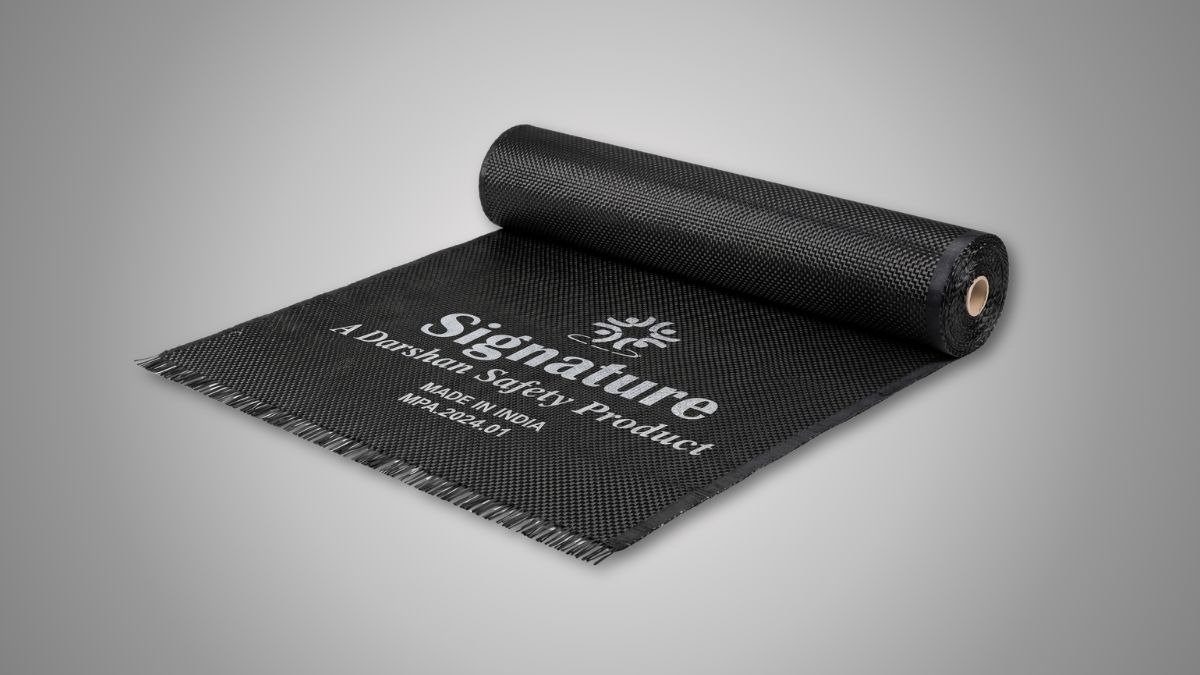

Signature Graphite FG Cloth

Description

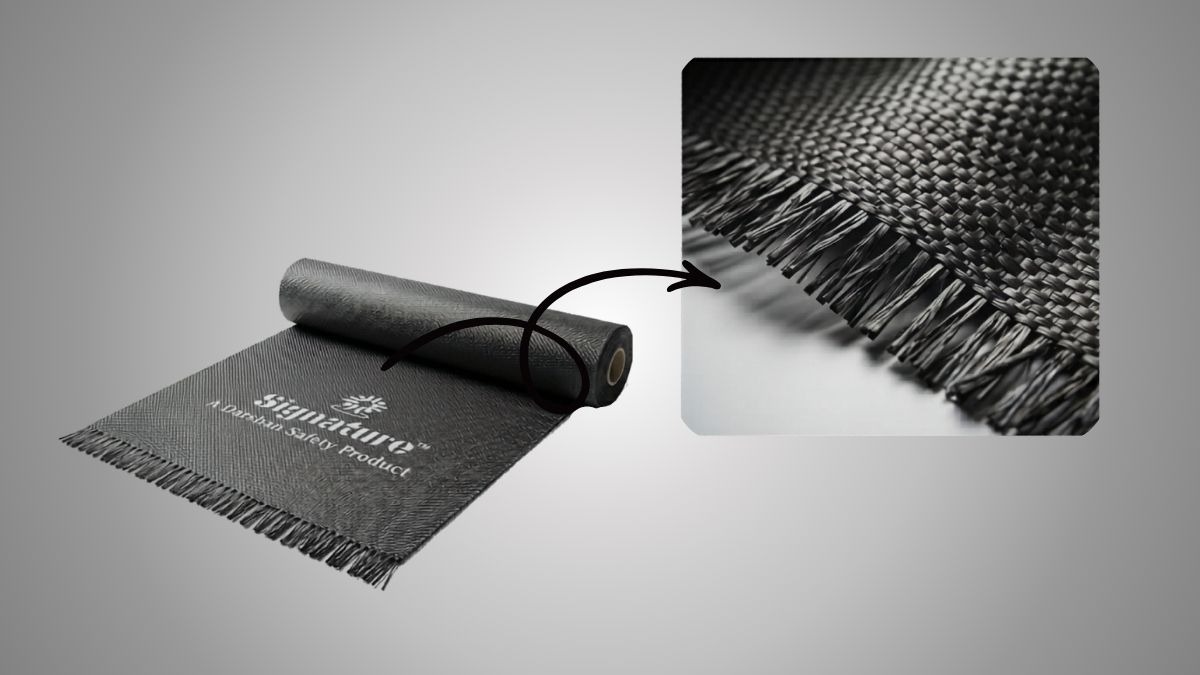

Hot equipment, sliding surfaces, and insulation wraps that need graphite performance — not plain fiberglass or aluminum foil alone — call for cloth you can name and reorder. Signature Graphite FG Cloth is fiberglass base with both-side graphite coating in black, built for FG Product programmes where heat resistance and a low-friction face matter on the same roll.

Thickness runs from light DSZGF0.2 at 0.2 mm (230 GSM) through medium DSZGF0.6 at 0.6 mm (490 GSM) up to heavy DSZGF3.0 at 3.0 mm (1900 GSM). Working temperature is listed per model — from 550 °C to 900 °C on DSZGF0.2 through 600 °C to 900 °C on several mid builds to 800 °C to 900 °C on thicker sections — so procurement can match both gsm and the temperature window on the PO.

You order by the area you need. On this page, enter length and width in metres — wrap a duct run, cover a slide plate, or line a heat-shield zone — and add the footprint that matches your site. Sold per SQM; most models reference a 1 × 30 m roll format, with DSZGF1.2 on a 1 × 50 m reference size.

Graphite on both faces gives you a consistent coated surface whether the cloth wraps a pipe, lies under moving parts, or shields equipment from radiant heat — without guessing which side is treated.

For maintenance stores, insulation contractors, and plants stocking FG accessories alongside aluminum FG cloth and tape, Signature Graphite FG Cloth means named DSZGF models, black both-side graphite, and cloth you cut to the job — not a one-size roll guess.

Manufactured under the Signature brand by Darshan Safety Zone — graphite-coated fiberglass cloth for industrial heat and wrap duty, sold by the square metre.

Features

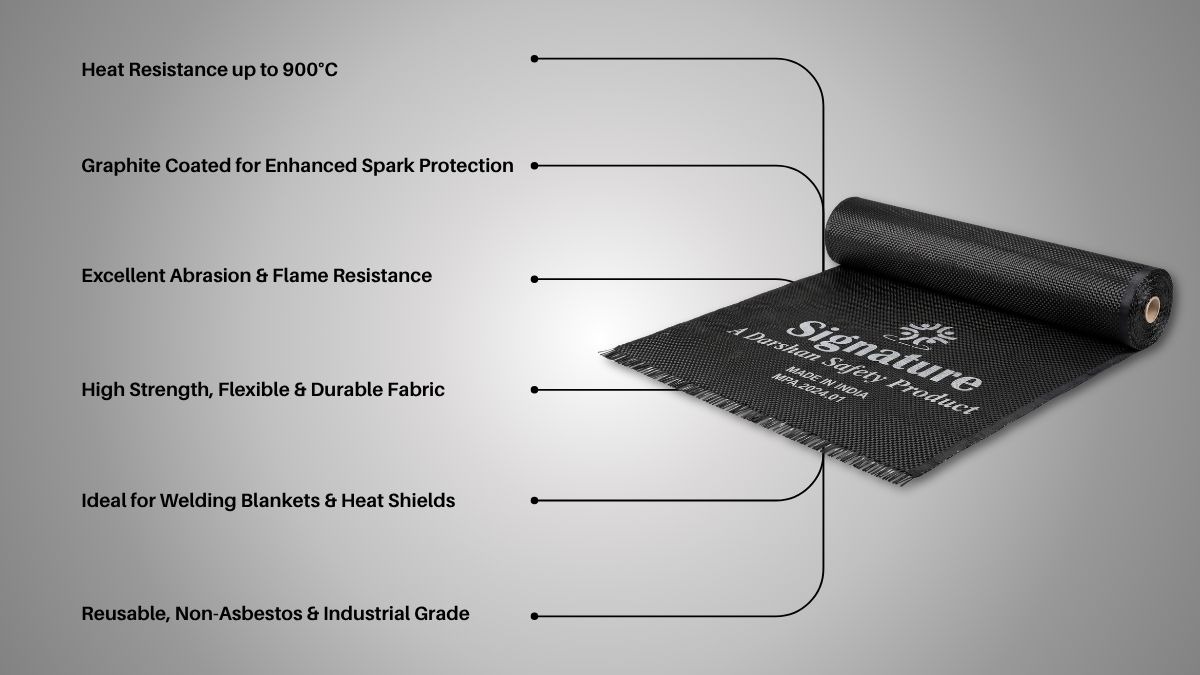

• Both-side graphite coated black finish
• Eleven models from 0.2 mm to 3.0 mm
• Working temperature 550–900 °C per model
• GSM 230 to 1900 by thickness
• Order by length × width — sold per SQM
• FG Product category — fiberglass cloth, not ceramic fabric

Use cases

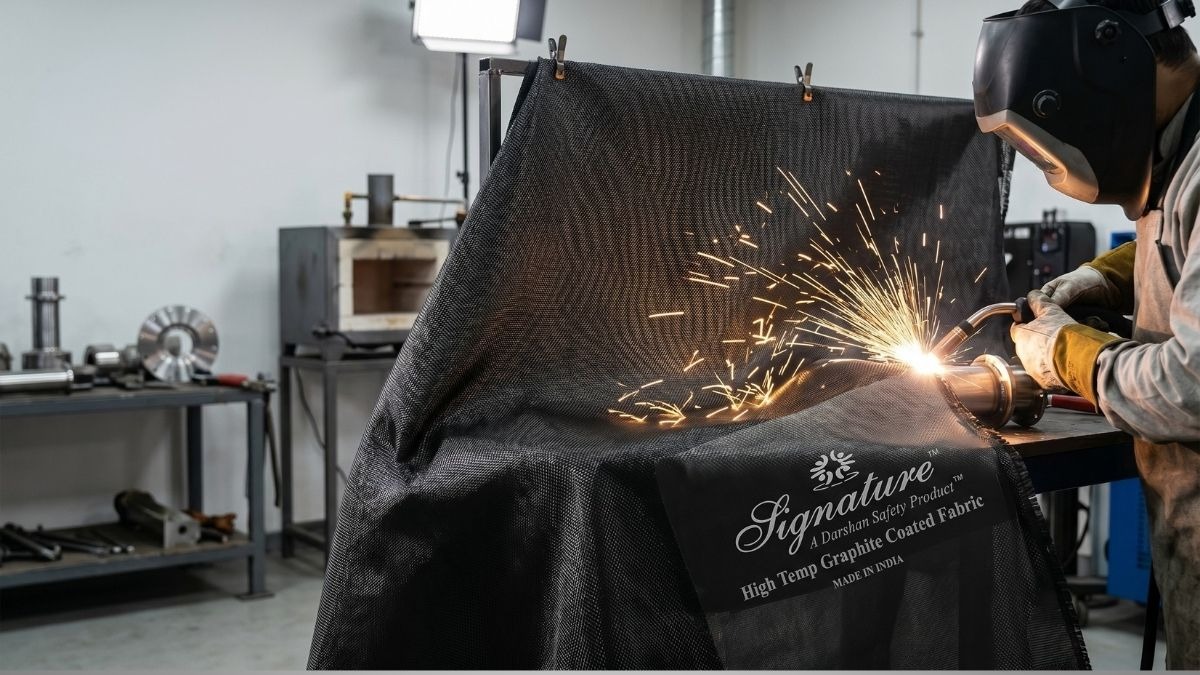

• Heat shield and equipment cover — size cloth to the zone you need to protect
• Pipe and duct wrap — pick thickness and gsm for line duty
• Low-friction surface protection — graphite face for sliding or wear-prone details
• Insulation detailing — complement FG tape and rope on the same programme
• Thickness standardization — one DSZGF model per duty level for stores

How to use

1. Select thickness model — DSZGF0.2 through DSZGF3.0 — for gsm and temperature duty.
2. Enter length and width in metres on this page for the area you need.
3. Cut and install per site wrap or shield procedure; secure edges as required.
4. Inspect coating and cloth for tears or delamination before each use.
5. Store dry and flat or rolled; retire material that is burned through or flaking.

Specifications
