Darshan Safety Zone
Signature Fiberglass Rope
Signature Fiberglass Rope

Signature Fiberglass Rope

4.5 (11 reviews)
₹300.00/ KG
Factory-direct pricing
Selected Variant

This product is customizable — send a quote request with your specifications.

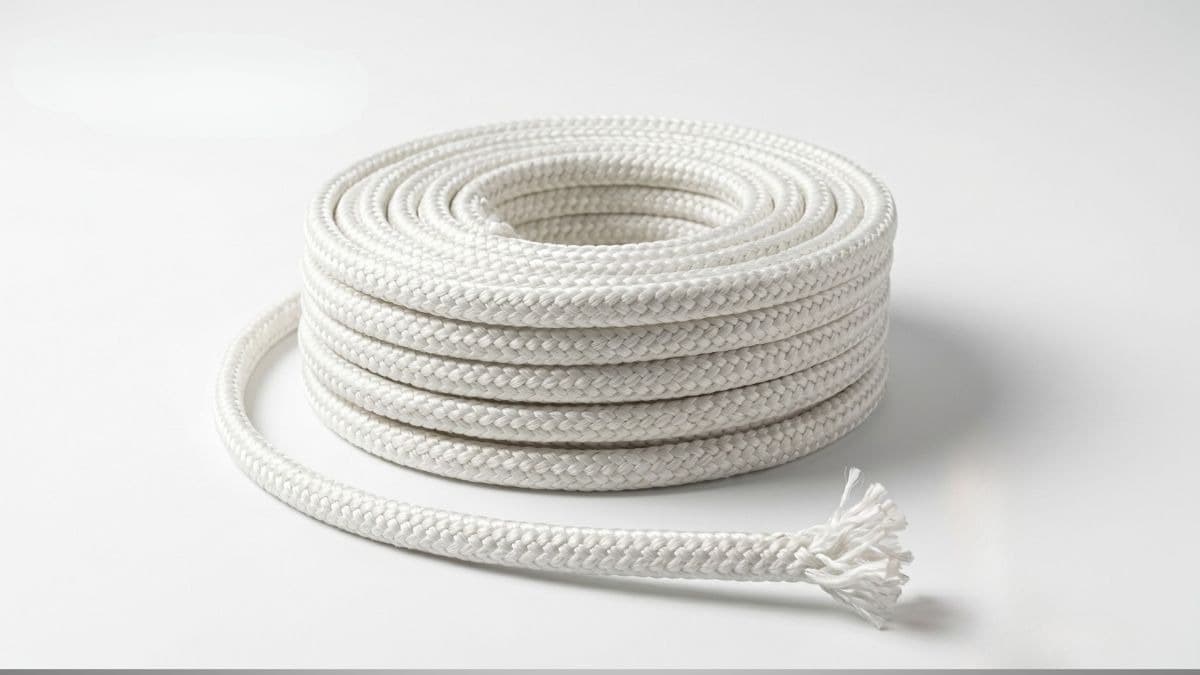

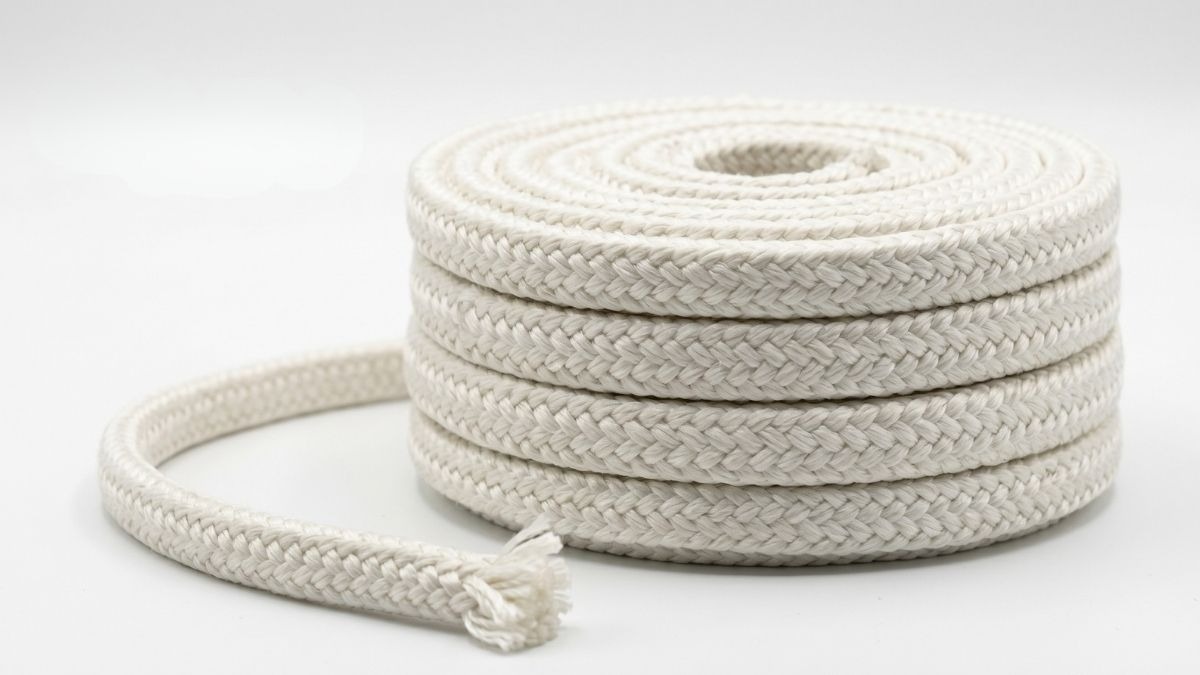

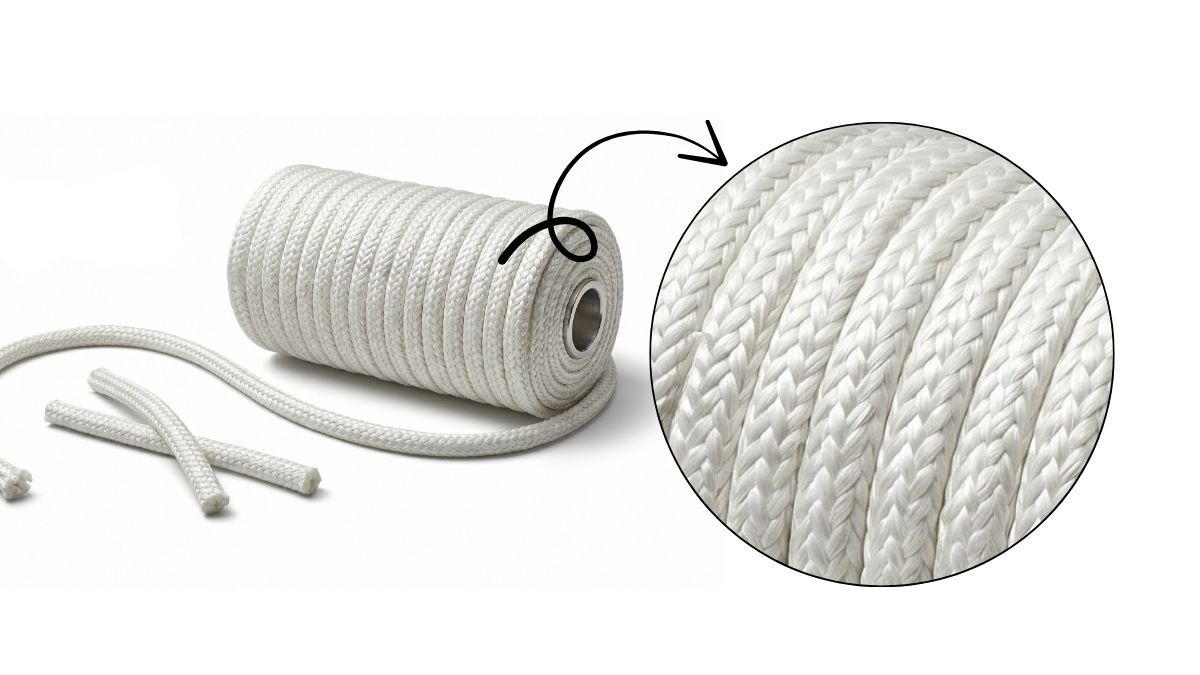

Signature Fiberglass Rope — white braided fiberglass for furnace seals, oven gaskets, and high-heat packing. Primary model DSZFR6 at 6 mm diameter; range runs to DSZFR50 at 50 mm. Rated 550 °C to 900 °C. Round or square profile. Sold per kg — request a quote for your diameter and coil requirement.

  • Ten catalogue diameters from 6 mm to 50 mm under the DSZFR family
  • 5 kg coils on smaller sizes; 25 kg coils on 25 mm and above

Description

Furnace doors, oven openings, and hot equipment joints need packing that flexes, seals, and stays stable in heat — not generic cord that chars and fails. Signature Fiberglass Rope is braided white fiberglass built for that duty: gasket rope, door seal, and thermal packing across FG Product programmes where 550 °C to 900 °C is routine.

Pick the diameter that matches your groove or seal gap. The catalogue runs from DSZFR6 at 6 mm through DSZFR19 at 19 mm on 5 kg coils, then steps up to heavy sections — DSZFR25 (25 mm), DSZFR32 (32 mm), DSZFR38 (38 mm), and DSZFR50 (50 mm) — on 25 kg coils. Each model lists approximate metres per kilogram so stores can plan cut length and reorder with confidence.

Profile is listed as round or square on every variant — confirm the shape your door seal or packing job needs when you request a quote. Colour is white across the range. Because this SKU is built for industrial programmes, ordering is quote-based: select the model that matches your diameter, note coil size and quantity, and send your specification through the quote request on this page.

For boiler and furnace maintenance teams, insulation contractors, and plants stocking FG accessories alongside tape and cloth, Signature Fiberglass Rope gives you named DSZFR models instead of anonymous “heat rope” — diameter on the label, temperature window on the spec, coil weight you can plan around.

Manufactured under the Signature brand by Darshan Safety Zone — fiberglass rope for industrial heat sealing and packing, sold by the kilogram.

Who needs this

  • Furnace and boiler maintenance crews replacing door and access seals
  • Insulation contractors packing joints and gaps in heat zones
  • FG Product stores stocking rope by diameter alongside tape and cloth
  • Procurement teams specifying DSZFR models on POs
  • Plants upgrading from generic packing to named Signature diameters

Where it is used

  • Industrial oven and furnace door seals
  • Boiler manways, sight ports, and access-panel packing
  • Kiln and heat-treatment equipment gasket detail
  • High-temperature joint filling and caulking
  • FG Product maintenance and shutdown seal kits

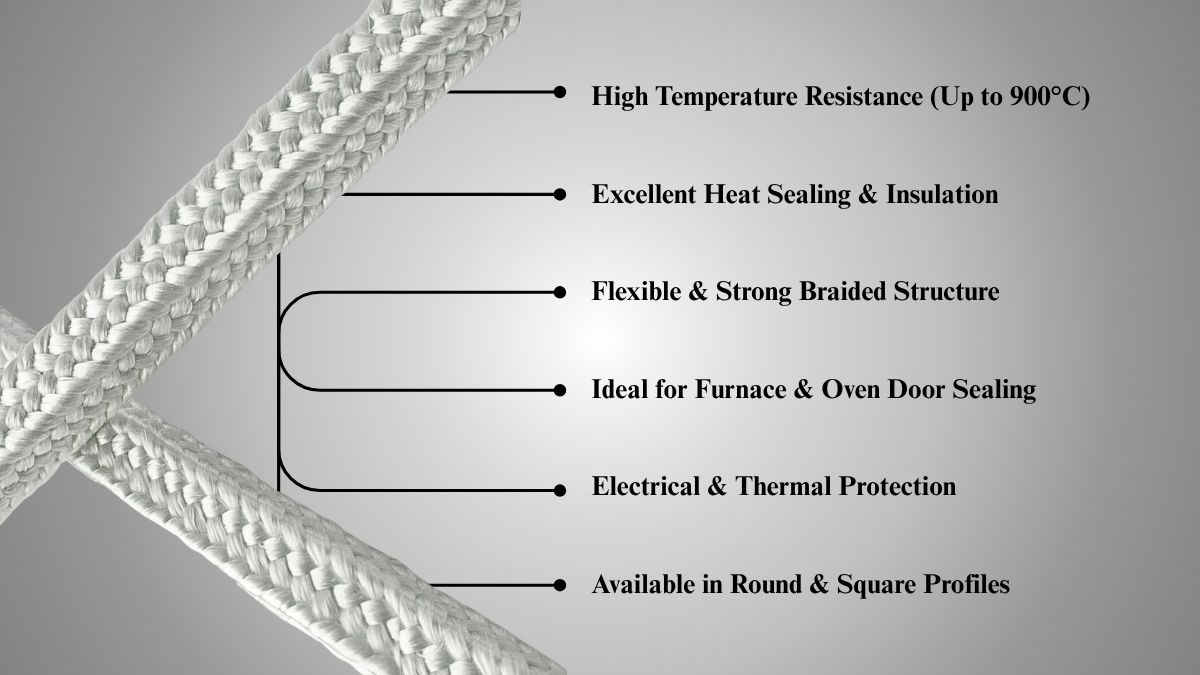

Features

  • Diameters 6 mm to 50 mm across ten DSZFR models
  • Rated 550 °C to 900 °C
  • Profile round or square
  • Colour white on all variants
  • Coil sizes 5 kg or 25 kg by diameter band
  • Sold per kilogram — quote-based ordering

Use cases

  • Furnace door sealing — pack the groove with the diameter that matches your door design
  • Boiler and oven gaskets — replace worn rope on manways and access panels
  • Joint and gap packing — fill high-temperature openings before cladding or hardware goes back on
  • Maintenance shutdown kits — stock multiple DSZFR diameters for recurring seal work
  • Programme standardization — one model number per diameter for stores and contractors

How to use

  1. Measure the seal groove or packing gap and select the matching DSZFR diameter (6 mm to 50 mm).
  2. Confirm round or square profile and coil size (5 kg or 25 kg) for your programme.
  3. Submit a quote request on this page with model, quantity, and any site notes.
  4. Pack or seal per your equipment procedure; compress evenly for a consistent gasket line.
  5. Inspect and replace when the rope is compressed, frayed, or no longer holds seal.

Specifications

Signature Fiberglass Rope model specifications
Model Size (dia.) Profile Coil size Metres per kg (approx.) Colour Working temperature Unit
DSZFR6 6 mm Round / Square 5 kg 20 m per kg White 550 °C to 900 °C KG
DSZFR8 8 mm Round / Square 5 kg 10 m per kg White 550 °C to 900 °C KG
DSZFR10 10 mm Round / Square 5 kg 6 m per kg White 550 °C to 900 °C KG
DSZFR12 12 mm Round / Square 5 kg 3 m per kg White 550 °C to 900 °C KG
DSZFR16 16 mm Round / Square 5 kg 2 m per kg White 550 °C to 900 °C KG
DSZFR19 19 mm Round / Square 5 kg 1.5 m per kg White 550 °C to 900 °C KG
DSZFR25 25 mm Round / Square 25 kg 25 m per 25 kg White 550 °C to 900 °C KG
DSZFR32 32 mm Round / Square 25 kg 15 m per 25 kg White 550 °C to 900 °C KG
DSZFR38 38 mm Round / Square 25 kg 10 m per 25 kg White 550 °C to 900 °C KG
DSZFR50 50 mm Round / Square 25 kg 7.5 m per 25 kg White 550 °C to 900 °C KG

Customer reviews

4.45 out of 5 based on 11 reviews

V

Vishal

Rated 4 out of 5

Model: DSZFR25

Sealing ke kaam me lagayi hai. Rope ki thickness pure length me uniform mili.

M

Mr. Anal Patel

Rated 4 out of 5

Model: DSZFR25

Fabrication ke kaam me do baar use kar chuke hain. Garmi ke baad bhi rope soft rehti hai.

S

Shyam

Rated 3 out of 5

Model: DSZFR25

Rope is fine but the ends unravel fast after cutting. Tape lagake use kar rahe hain.

S

Satish Singh

Rated 5 out of 5

Model: DSZFR6

Patli rope hai, chhote gap me easily chali jati hai. Counter pe chal rahi hai.

S

Sunil Kumar

Rated 5 out of 5

Model: DSZFR50

Thick rope went straight into the furnace door gasket. No extra cutting needed.

S

Sunil Kumar

Rated 4 out of 5

Model: DSZFR19

Braid thodi dhili lagi opening ke time. Kaam me chal gaya, rate theek hai.

M

Mr. Umesh Thakkar

Rated 5 out of 5

Model: DSZFR8

Bilkul sahi.

M

Mithalesh Dewangan

Rated 4 out of 5

Model: DSZFR16

Supply on time.

Y

Yashwanti Enterprises & Industrial Suppliers

Rated 5 out of 5

Model: DSZFR.R25

Sells well from our counter. Coil weight matched the bill, no shortage.

A

Anil Gupta

Rated 5 out of 5

Model: DSZFR.S38

38mm square rope, packed the oven door channel in one run. Square profile stays in the groove better than round for this job.

G

GBM Manufacturing Pvt. Ltd.

Rated 5 out of 5

Model: DSZFR.R6

6mm round FG rope in the oven door groove. Seals fine in the 550-900 band we run. Will keep this dia in stores.
