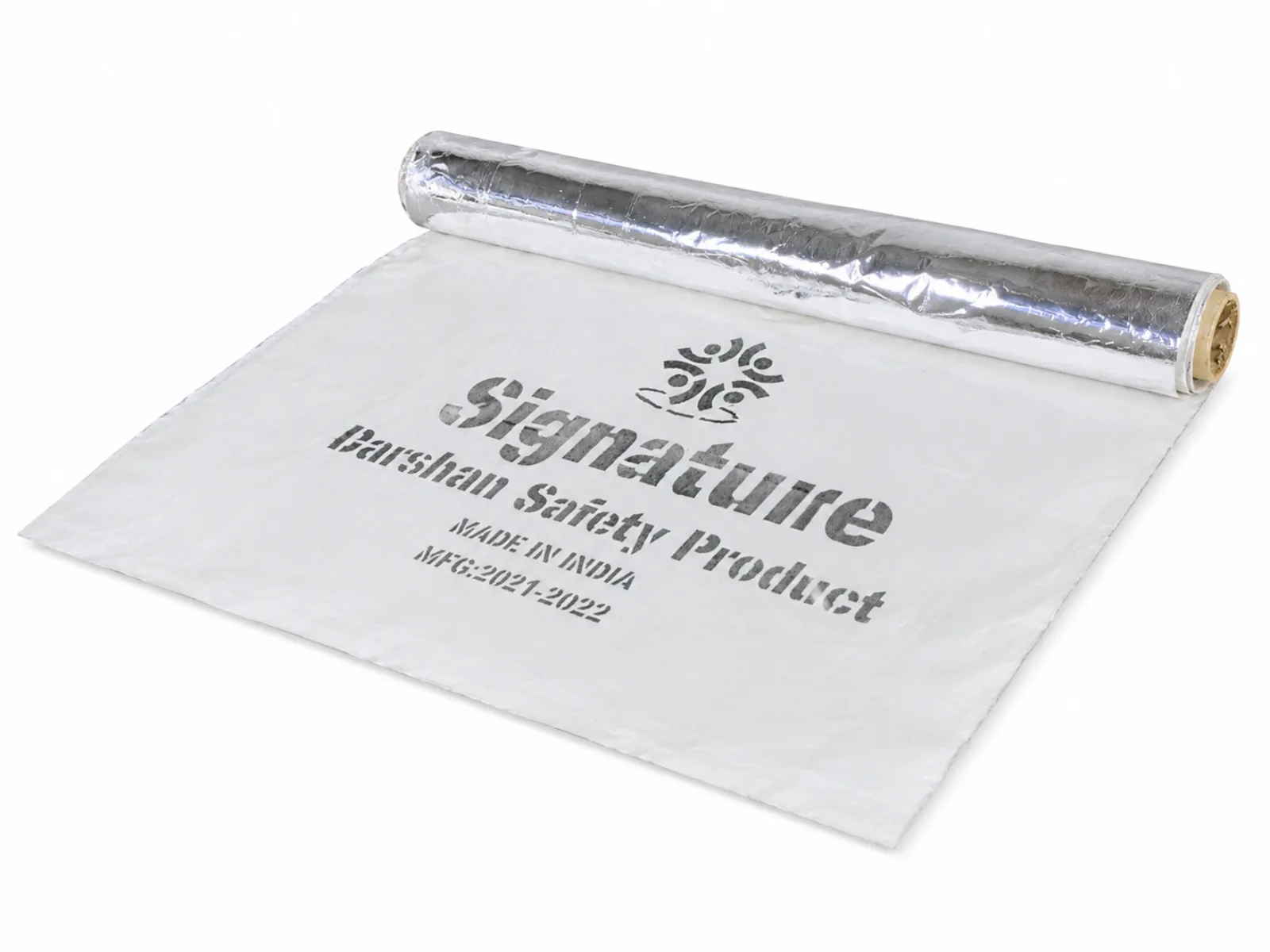

Signature Aluminum FG Cloth

Description

When ducts, furnaces, and hot equipment need a reflective cloth layer — not a finished garment — Signature Aluminum FG Cloth delivers aluminum-foil-coated fiberglass cloth for industrial heat insulation and heat-shield work under the FG Product line.

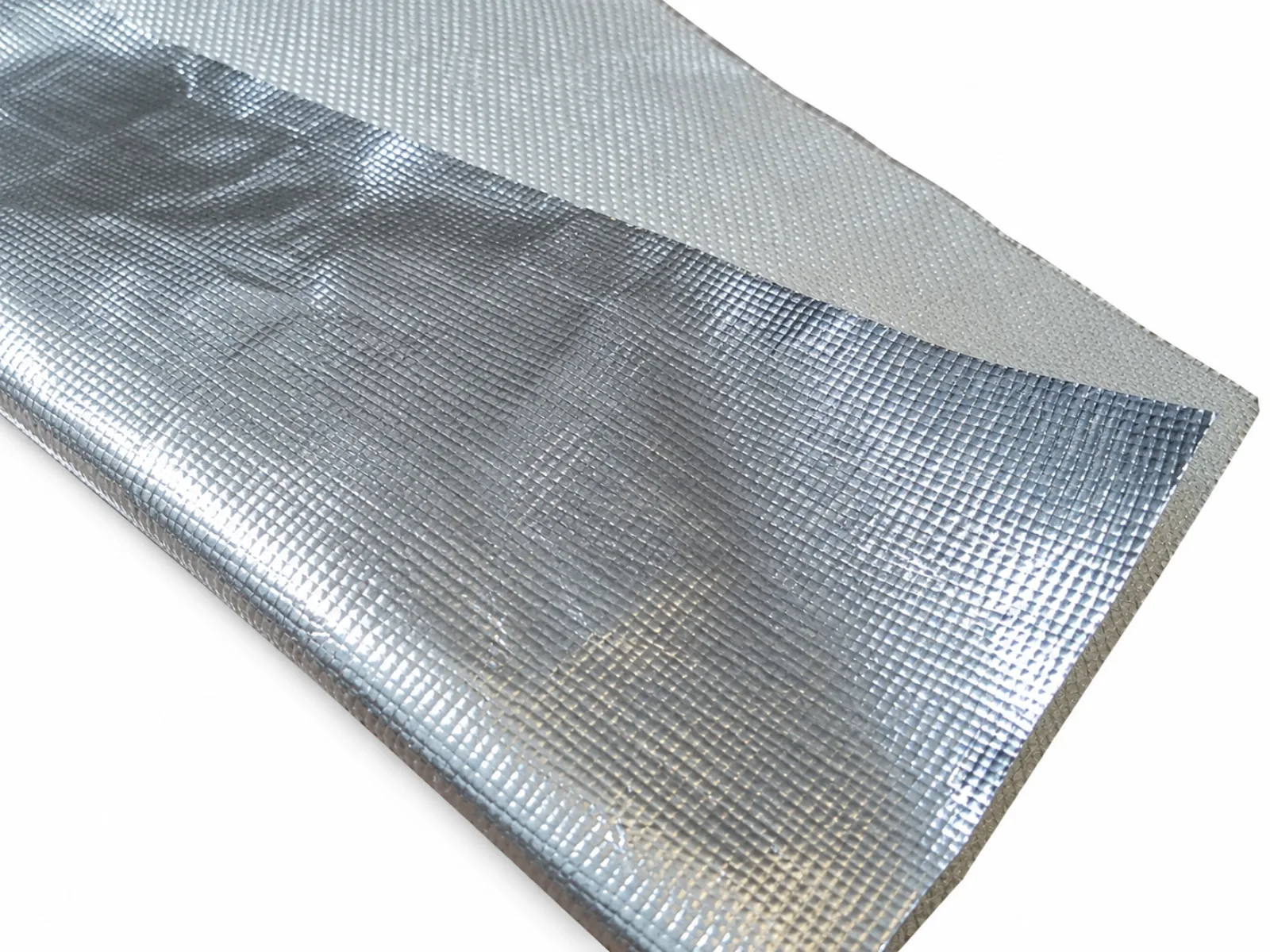

Every roll uses an aluminum foil coating (pure aluminum foil coating per model specification) in a clean silver finish. The foil face helps reflect radiant heat while the fiberglass base carries the wrap — with a documented working temperature of 550 °C to 900 °C.

Thickness is the buying decision. Three models cover the range: DSZALFG0.2 (0.2 mm, 200 gsm), DSZALFG0.3 (0.3 mm, 350 gsm), and DSZALFG0.5 (0.5 mm, 480 gsm). Step up thickness and gsm when the duty needs more mass; stay lighter for detailing and wrap flexibility.

Roll size is 1 × 50 meter on all variants. Unit of sale is SQM, so procurement can indent by area while stores stock the named thickness models. Custom programmes are available; lead with the three listed SKUs for standard plant matrices.

This is FG cloth by the square metre — not Signature aluminized coats or gloves. Keep language clear so insulation buyers do not confuse cloth rolls with fire-suit PPE. Signature by Darshan Safety Zone gives you named models, consistent foil coating, and a temperature window you can write into a purchase order.

Specify DSZALFG0.2–0.5 when aluminum-foil-coated fiberglass cloth is required for furnace, boiler, duct, or heat-shield work — catalogue-consistent, work-ready, and built for industrial heat zones.

Features

• Aluminum foil coating — silver finish
• Pure aluminum foil coating (model specification)
• Working temperature 550 °C to 900 °C
• Thicknesses 0.2 / 0.3 / 0.5 mm
• Weights 200 / 350 / 480 gsm
• Roll 1 × 50 m — sold per sqm

Use cases

• Furnace and boiler insulation — wrap and shield high-temperature surfaces
• Duct and equipment heat barriers — reflective aluminum FG cloth where radiant heat is an issue
• Expansion joints and detailing — cut cloth for gaps and fabrication edges
• Foundry, steel, and power plants — industrial heat zones stocking FG Products
• Plant insulation standardization — three thickness SKUs for stores and contractors

How to use

1. Select thickness model (DSZALFG0.2, 0.3, or 0.5) for site duty and gsm.
2. Cut and wrap clean surfaces per the site insulation procedure; orient the foil face as required.
3. Inspect foil and cloth for tears or delamination before installation.
4. Replace damaged material; store dry and avoid sharp folds that crack the foil.

Specifications
