Signature Fiberglass Cloth
Fiberglass Fabric
Introducing the Fiberglass Fabric (DSZFG0.6), a premium high-temperature insulation fabric woven from 100% E-Glass Yarn, specially designed for fire safety, heat insulation, and industrial protection applications.
This fabric offers excellent thermal resistance, electrical insulation, chemical resistance, and fire protection. Its lightweight yet durable structure makes it ideal for industrial, automotive, marine, and high-temperature insulation systems.
| Feature | Details |
|---|---|
| Working Temperature | 650°C to 900°C |
| Fire Rating | 2 Hours @ 650°C |
| Material | 100% E-Glass Yarn |
| Thickness Range | 0.2 mm to 3.0 mm |
| Approved Standards | BS EN 1869:2019, CE, ISO 9001:2015 |
Strong thermal insulation, low smoke emission, self-extinguishing, and excellent fire resistance for industrial heat safety applications.

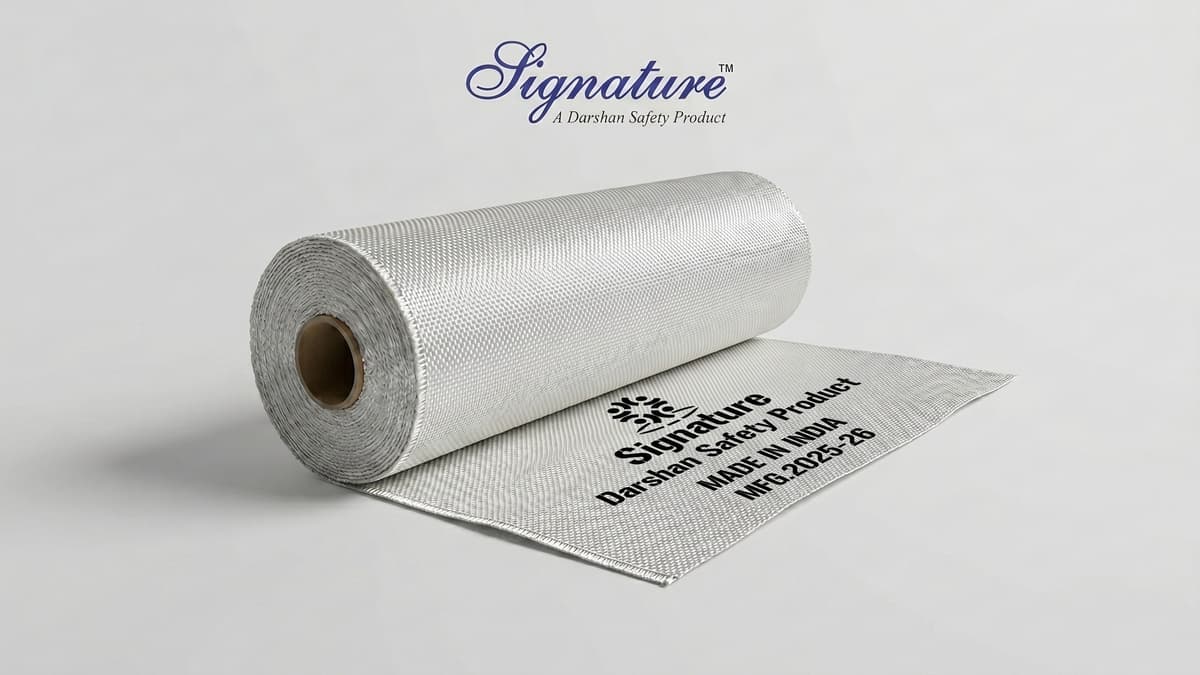

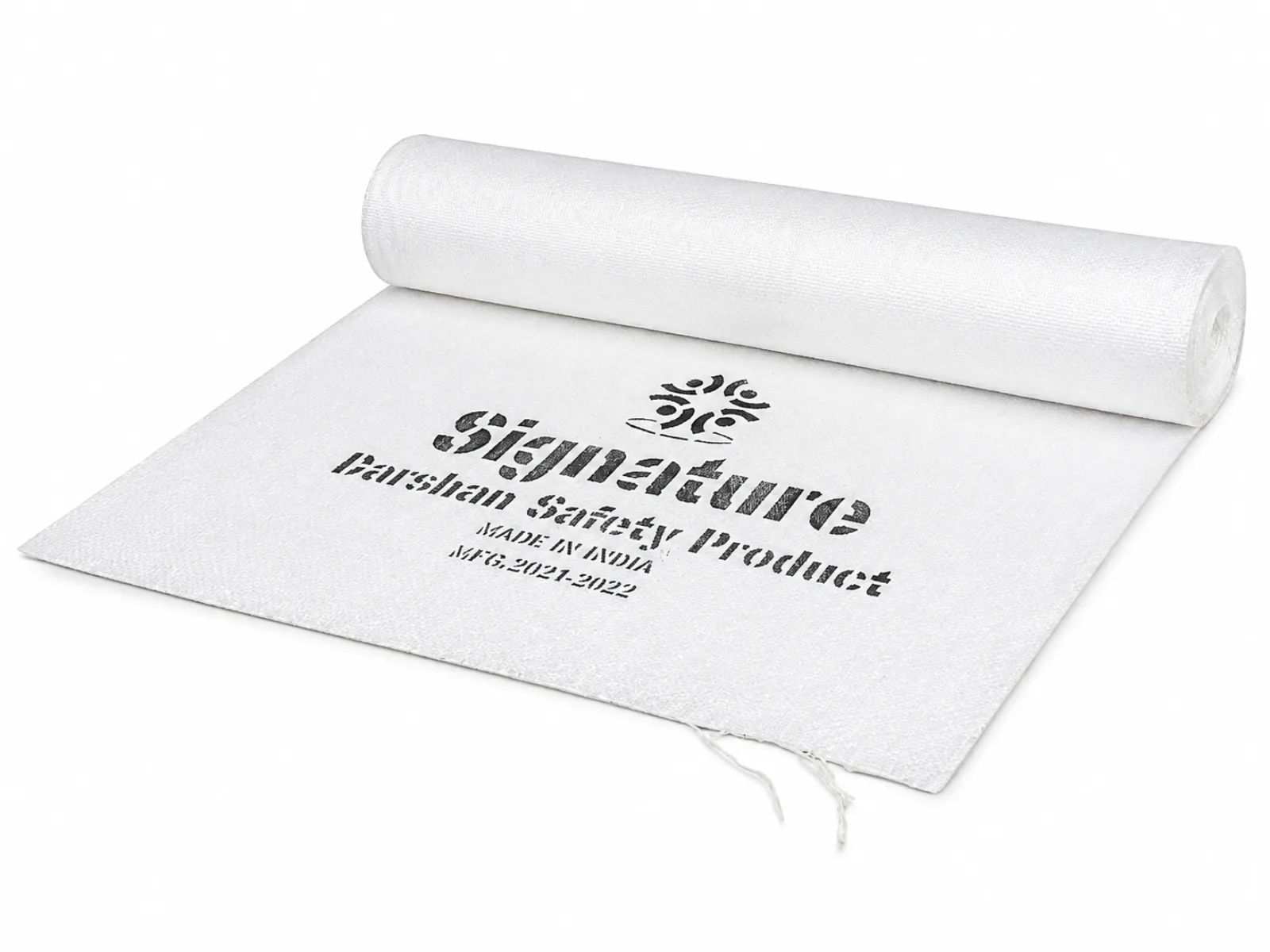

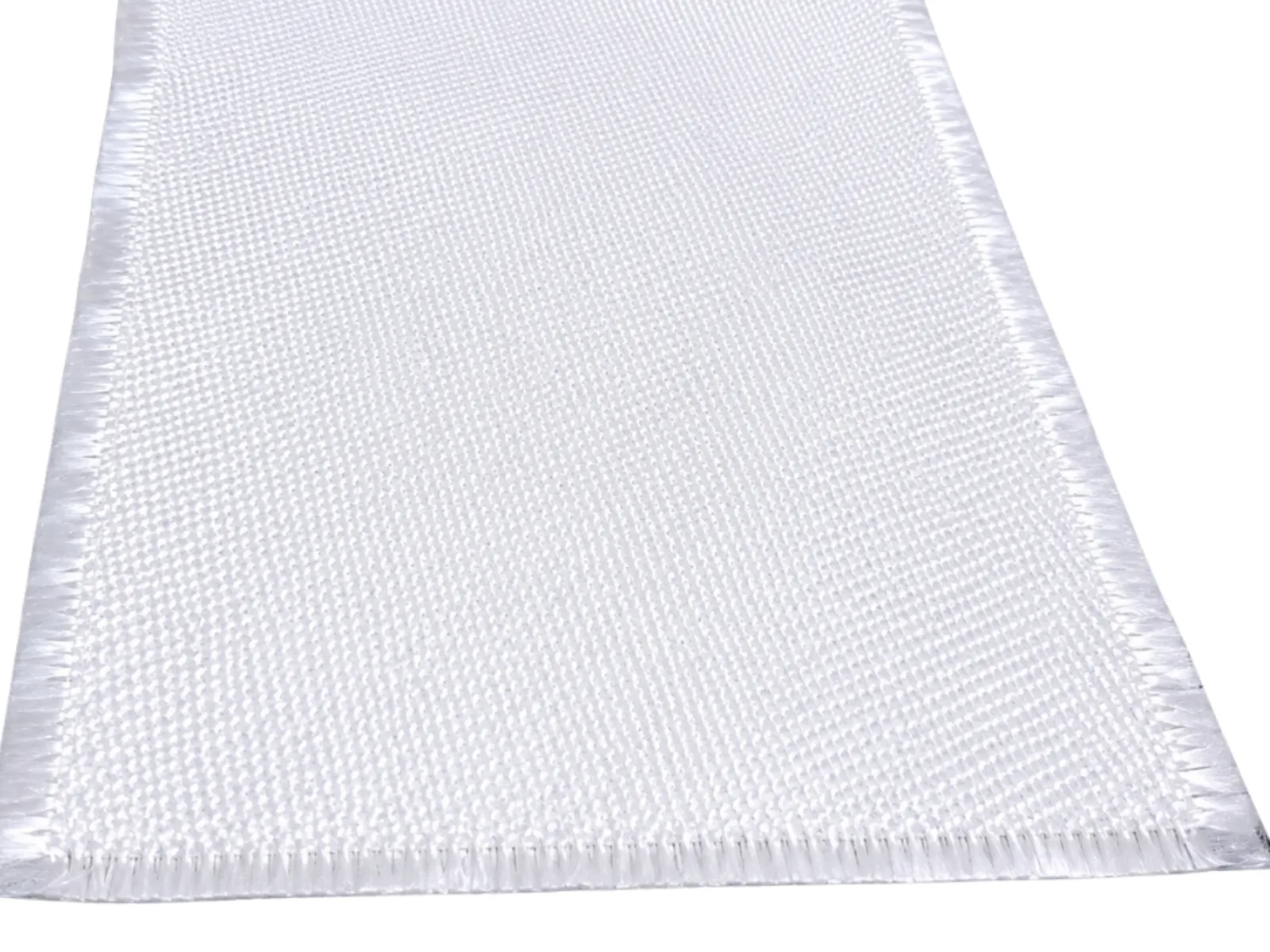

Fiberglass Fabric (DSZFG0.6)
The Signature Fiberglass Fabric is a premium woven insulation fabric manufactured from 100% E-Glass Yarn and specially designed for industrial fire safety, thermal insulation, and high-temperature protection applications.

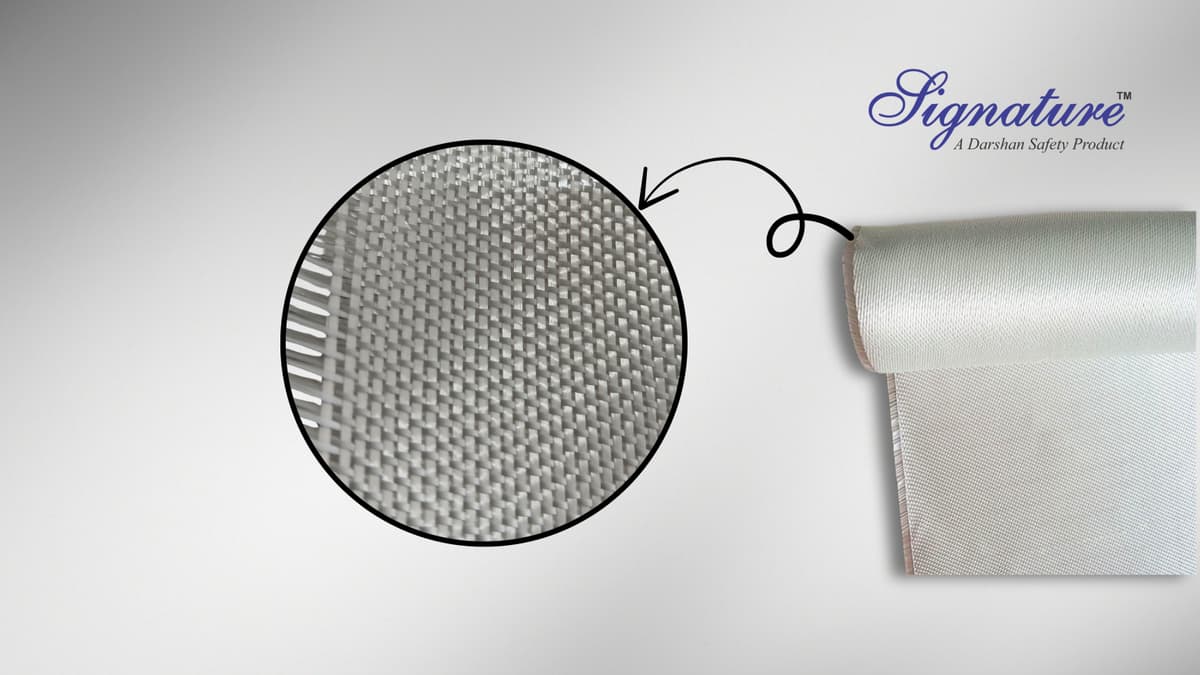

Fiberglass consists of numerous extremely fine fibers of glass formed by extruding silica-based glass into thin strands suitable for textile processing. This structure gives the fabric excellent strength, lightweight performance, and superior thermal resistance.
It is widely used across industrial, electrical, automotive, marine, and chemical industries due to its strong fire resistance, chemical resistance, moisture protection, and excellent heat insulation properties.
Technical Specifications
| Specification | Value |
|---|---|
| Product Code | DSZFG0.2 / DSZFG0.4 / DSZFG0.6 / DSZFG1.0 / DSZFG2.0 / DSZFG3.0 |
| Material | Woven From 100% E-Glass Yarn |
| Working Temperature | 650°C to 900°C |
| Fire Rating | 2 Hours @ 650°C |
| Available Thickness | 0.2 mm, 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm |
| Roll Width | 500 mm, 1000 mm, 1270 mm, 2000 mm |
| Roll Length | 25 M, 30 M, 50 M, 100 M, 200 M |
| Approved Standards | BS EN 1869:2019, IS 11871 (Method A & B), IS 15381, IS 1969, IS 3442, ASTM D 3775, ISO 9001:2015, CE |
Benefits in Heat Insulation & Fire Safety
- Excellent thermal resistance and temperature stability
- Strong fire resistance with self-extinguishing properties
- Low smoke emission during fire exposure
- Excellent moisture resistance and durability
- Lightweight and easy installation
- Reliable electrical insulation performance
- Strong chemical resistance for harsh environments
- Compliance with major industrial safety standards
Applications
- Electrical Insulation in Motors, Generators, Transformers
- Thermal Insulation in Buildings, Pipes, and Equipment
- Chemical Plants and Laboratory Protection
- Automotive Components (Engine Covers, Fuel Tanks, Body Panels)
- Marine Components (Boat Hulls, Decks, Superstructures)
- Industrial Fire Safety Systems
- High-Temperature Heat Shields
- General Industrial Insulation Applications
