fiberglass tape in Rishikesh

Specify Fiberglass Tape Width

eadmin maMarch 25, 20266 min read
White Signature Fiberglass Tape wrapping a steel exhaust pipe
In this article

Fiberglass tape is the wrap you specify when an exhaust pipe or flange in a Rishikesh workshop needs a heat barrier without a full cloth sheet.

You may be writing the indent for a fabrication bay along the Ganga corridor, a hydropower pipe detail during an outage window, or a small engineering shed that still runs hot after the tourist traffic fades. The tape does not change with the pin code. Match the joint, the width, and the kilograms you need.

Name the heat wrap on the pipe

Fitter starting Signature Fiberglass Tape wrap on a pipe flange

You are the person who has to name the material on the requisition. A full cloth sheet is the wrong indent when the job is a flange, a short exhaust run, or a cable bundle that only needs a bind. Outside a Rishikesh shed the air can feel mild. At the joint, the metal is still hot enough to need a listed wrap.

Signature Fiberglass Tape is white fiberglass tape with no coating. It is for high-temperature wrap and bind on pipes, cables, and equipment. It is not silicone insulation tape, and it is not a finished blanket.

Put it on the jobs this tape is listed for.

  • Pipe and flange wrap: a band around a hot joint where cloth would waste width.
  • Exhaust and heat-zone detailing: short runs on workshop exhaust lines and similar faces.
  • Furnace and boiler detail: small openings and binds beside a casing during maintenance.
  • Cable and equipment bind: a wrap where the method calls for uncoated fiberglass tape, not adhesive tape.

Walk the joint before you raise the indent. Write the diameter, whether the wrap stays on after start-up, and whether the surface sits in the 550 °C to 900 °C window listed on these models. A hillside fabrication bay and a hydropower pipe detail can share the same family and still need different widths.

If the drawing already calls for Signature Insulation Tape, stop. That is a different product under Insulation Cloths. Do not send uncoated fiberglass tape in its place because the word “tape” matches.

On the indent, write the job in plain words, such as “exhaust flange wrap, stays on”. That line stops the wrong roll leaving stores.

Match width and thickness

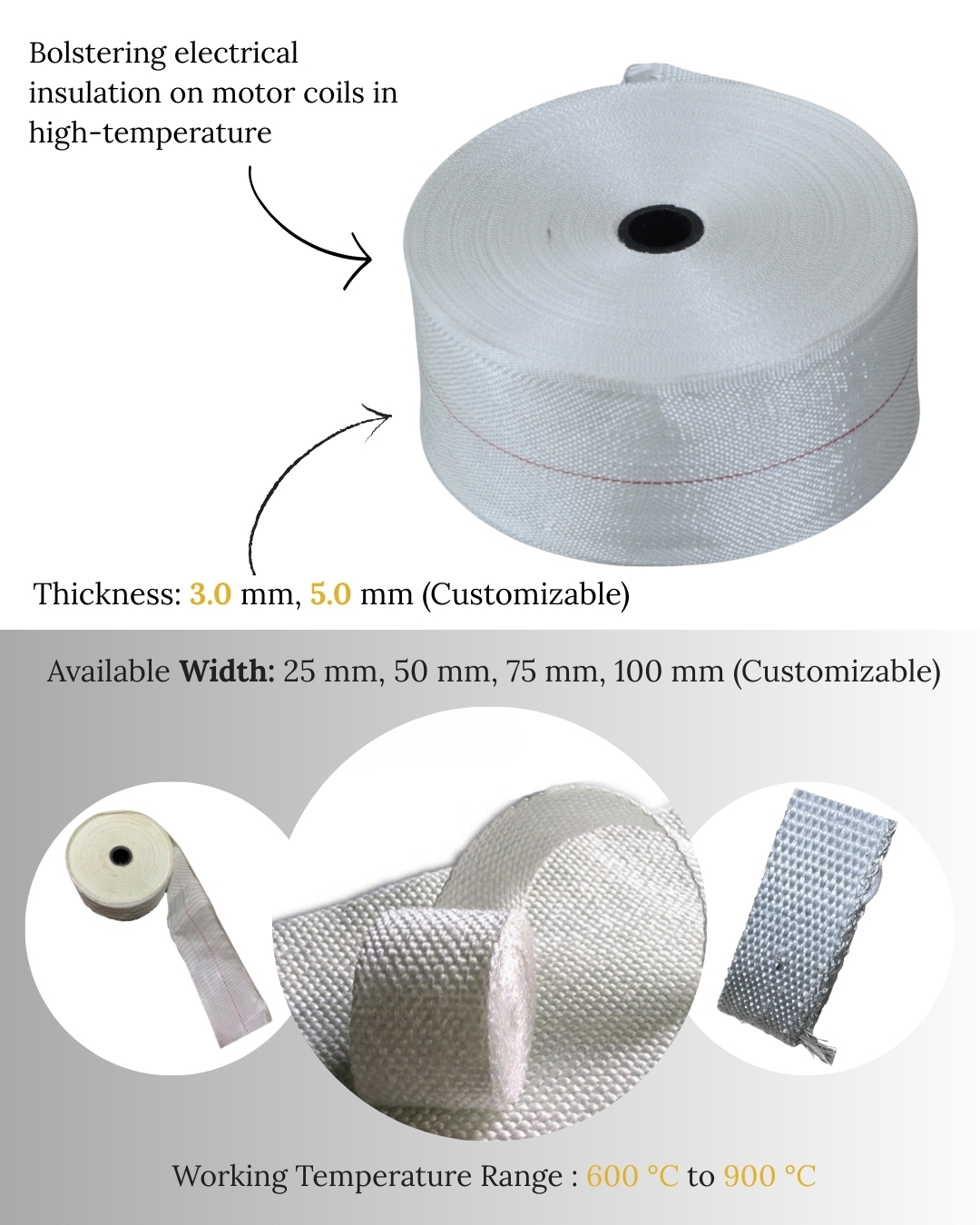

White Signature Fiberglass Tape rolls of different widths on a table

The habit on old indents is to write “fiberglass tape” and leave the size blank. That habit misses this product. Signature Fiberglass Tape is a fixed catalogue of width × thickness builds. Colour is white. Adhesive coating is none. Working temperature on every model is 550 °C to 900 °C.

Pick the 3 mm section when the method names that build.

  • DSZFTP3.25 — 25 × 3 mm
  • DSZFTP3.40 — 40 × 3 mm
  • DSZFTP3.50 — 50 × 3 mm
  • DSZFTP3.75 — 75 × 3 mm
  • DSZFTP3.100 — 100 × 3 mm

Pick the 5 mm section when the method needs the thicker build: DSZFTP5.25, DSZFTP5.50, DSZFTP5.75, and DSZFTP5.100. Those coils are listed as 30 metre rolls. There is also DSZFTP7M50 at 50 mm wide × 50 metre long, 7 MIL thick, listed by the roll.

Measure the joint. A narrow flange does not need a 100 mm wrap, and a wide exhaust face should not be covered by a 25 mm band that leaves bare metal. The product is not customizable. Do not invent a width between catalogue sizes.

Write the model number and the size on the indent. A line that only says “white tape” will be guessed in stores.

Order by the kilogram

Hands winding white Signature Fiberglass Tape around a steel pipe

You buy most of these models by the kilogram, not by guessing a pretty metre count on the phone. Each DSZFTP3 and DSZFTP5 row carries an approximate metres-per-kilogram note so you can plan the wrap. Use that note. Do not invent a different yield because last year’s roll felt longer.

  • 3 mm examples: DSZFTP3.25 about 15 m per kg; DSZFTP3.50 about 7 m per kg; DSZFTP3.100 about 3 m per kg.
  • 5 mm examples: DSZFTP5.25 about 7 m per kg; DSZFTP5.50 about 4 m per kg; DSZFTP5.100 about 1.5 m per kg.
  • DSZFTP7M50 is listed at 460 gram per roll for the 50 mm × 50 m build.

Count the joints on the outage list. Multiply by the wraps your method needs. Convert to kilograms using the model row, then add a spare for the next shift. A hillside workshop that orders “two rolls” without a model will get the wrong width and still run short.

Watch the unit on the quote. If the line comes back as square metres, you are looking at cloth, not this tape. Fiberglass tape for pipe wrap is sold KG on the catalogue models above.

If the unit on the indent is metres only and the model is a DSZFTP3 or DSZFTP5 row, stop. Change the line to kilograms against that model.

Wrap tight, then check again

Stores clerk inspecting a Signature Fiberglass Tape roll before issue

This tape has no adhesive coating. It stays on because you wrap it the way the job method says, with the overlapping turns and the end fix your site already uses. Hand the fitter the model with the roll, not after the first joint on a night shift.

  • Step 1: Match the model on the roll to the indent before anyone starts wrapping.
  • Step 2: Start on clean metal. Oil and grit under the first turn stay under the wrap.
  • Step 3: Pull each turn firm and even. Leave the overlap your method names. Do not stretch a short piece and hope the end holds.
  • Step 4: Secure the end the way the procedure already says. The tape is the barrier. It is not sticky tape from the tool crib.
  • Step 5: After the first heat cycle, walk the line. Look for a gap at a flange, a frayed edge, or a turn that has loosened.

Inspect the roll before issue. Retire tape that is soaked, burned, or unravelled to the core. Store dry, with the model written on the bin. A cool morning on the Ganga corridor does not mean the next outage can start with unmarked offcuts.

If a turn lifts after the first heat, do not cover it with adhesive tape from the stores drawer. Rewrap with the listed fiberglass model.

Made in Ahmedabad, sent to site

Carton of Signature Fiberglass Tape rolls ready for warehouse dispatch

Signature Fiberglass Tape is made by Darshan Safety Zone in Ahmedabad, under the Signature brand. The company has made fire safety and heat protection products since 2012, and its quality system is certified to ISO 9001:2015.

Orders can be dispatched across India, including to a site in Rishikesh, and freight is confirmed in the quotation. There is no counter in Rishikesh, and there is no same-day promise.

Discussion (0)

Join the conversation

Sign in to leave a comment for our applications team.

Sign in to comment
No comments yet. Be the first to ask a specification question.

What do buyers ask before specifying?

Common questions on materials, applications, and plant fit.

Is Signature Fiberglass Tape the same as Signature Insulation Tape?
No. Fiberglass tape is uncoated white FG Product tape sold by the kilogram. Insulation tape is a separate silicone product. Follow the name on the drawing before stores raises the indent.
What temperature should I write on the indent?
Every model lists 550 °C to 900 °C. Add the model number and the width × thickness size. Do not copy an older brochure that stops at 600 °C.
Does this tape have an adhesive face?
No. The adhesive coating field is listed as no coating on every variant. Secure the wrap the way your site method already says.
How do I decide between 3 mm and 5 mm?
Follow the thickness named in the job method or insulation sketch. Measure the joint width, then pick the matching catalogue size. Do not invent a size between the listed builds.
Why is the order in kilograms?
The DSZFTP3 and DSZFTP5 models are sold per kilogram, with approximate metres per kilogram on each row. DSZFTP7M50 is listed by the roll at 460 gram. Plan the wrap from those figures.
Do you keep stock in Rishikesh for same-day issue?
No. Manufacturing is in Ahmedabad. Signature products can be dispatched across India, and freight is confirmed in the quotation. There is no local warehouse promise.
Can I order a custom width for an odd flange?
No. The product is not listed as customizable. Choose the nearest catalogue width and thickness, or ask for a recommendation against the joint you measured.
Can someone visit the plant to help pick the model?
Darshan Safety Zone can visit a site to recommend a product for the job. Ask for that when you request a quotation, and have the joint size and surface temperature ready. The visit does not replace the model number on the order.
