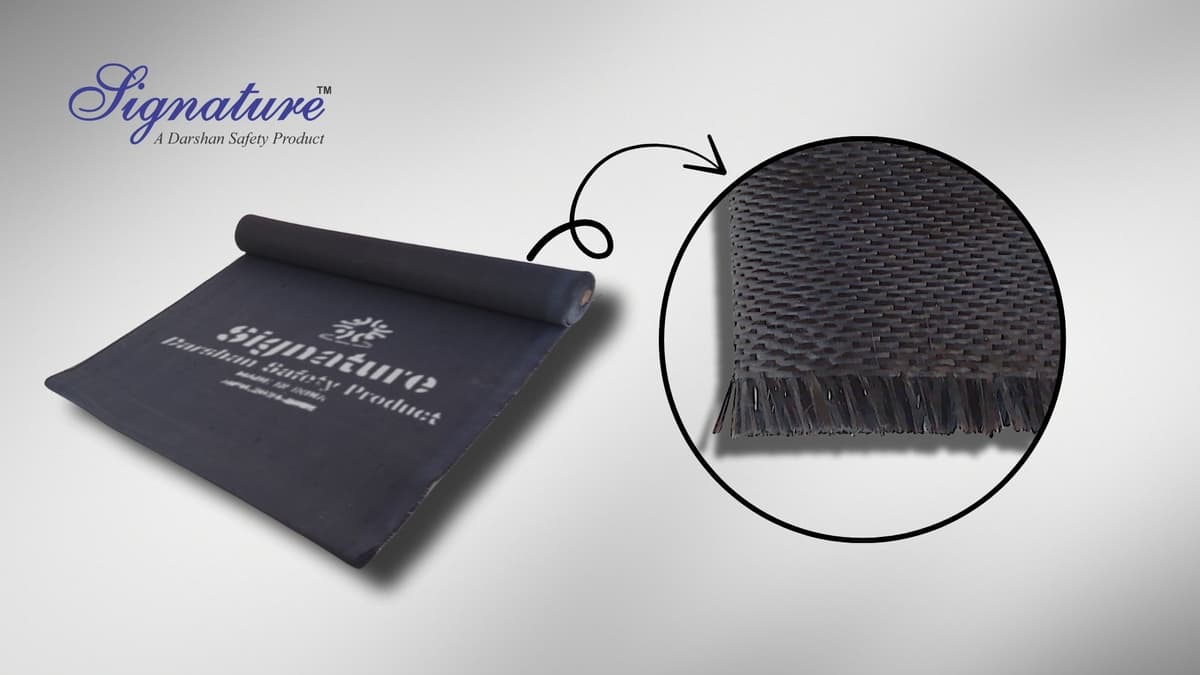

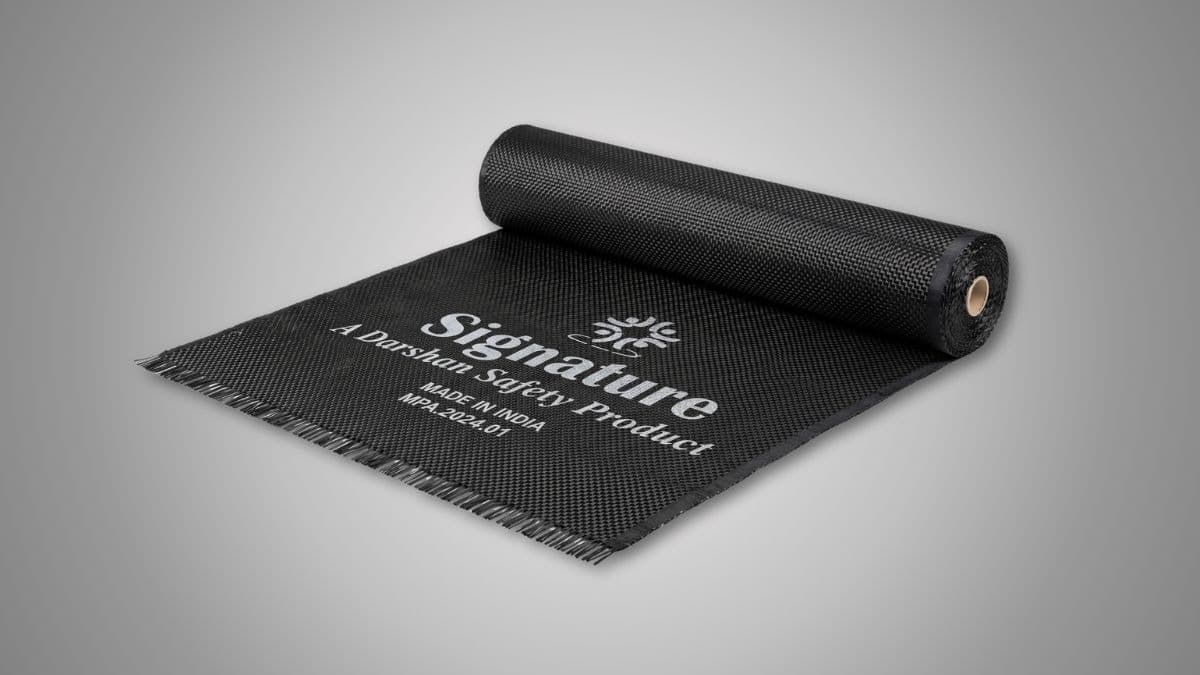

Signature Graphite FG Cloth
Graphite Coated Fiberglass Fabric
Introducing the Graphite Coated Fiberglass Fabric (DSZGFG1.0), a premium industrial high-temperature fabric specially designed for thermal protection, conductivity control, and low-friction industrial applications.
This specialized material combines the strength of fiberglass fabric with the unique performance of graphite coating, offering excellent lubricity, conductivity, wear resistance, and smooth sliding performance for demanding industrial environments.
| Feature | Details |
|---|---|
| Working Temperature | 650°C to 900°C |
| Color | Black |
| Thickness | 0.2 mm to 3.0 mm |
| Coating Type | Conductive / Non-Conductive |
| Roll Size | 1 x 50 Meter |
Customized roll sizes available for industrial applications requiring high heat resistance, low friction, and conductive performance.
Graphite Coated Fiberglass Fabric (DSZGFG1.0)
The Graphite Coated Fiberglass Fabric is a premium industrial high-performance material designed for extreme temperature applications where heat resistance, conductivity, and low-friction performance are essential.
This specialized fabric combines the strength and durability of fiberglass fabric with the unique properties of graphite coating, delivering excellent lubricity, conductivity, abrasion resistance, and superior sliding performance.
The graphite coating creates a low-friction surface that helps reduce wear and tear on moving parts, improves operational efficiency, and makes it easier to slide or move equipment in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Code | DSZGFG1.0 |
| Working Temperature | 650°C to 900°C |
| Color | Black |
| Available Thickness | 0.2 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm |
| Coating Type | Conductive & Non-Conductive |
| Roll Size | 1 x 50 Meter |
| Customized Size | Available as per industrial requirement |
Key Benefits
- Excellent heat resistance for high-temperature environments
- Superior lubricity for smooth sliding applications
- Low-friction surface reduces wear and tear
- Conductive and non-conductive coating options available
- Strong abrasion resistance and durability
- Improves efficiency of moving parts and machinery
- Reliable industrial performance in harsh environments
- Long service life with minimal maintenance
Applications
- Industrial Heat Shields
- High-Temperature Insulation Systems
- Sliding Surface Protection
- Mechanical Wear Reduction Applications
- Moving Equipment and Machinery Protection
- Fireproof and Heat Resistant Covers
- Conductive Industrial Protection Systems
- Heavy-Duty Industrial Thermal Applications
