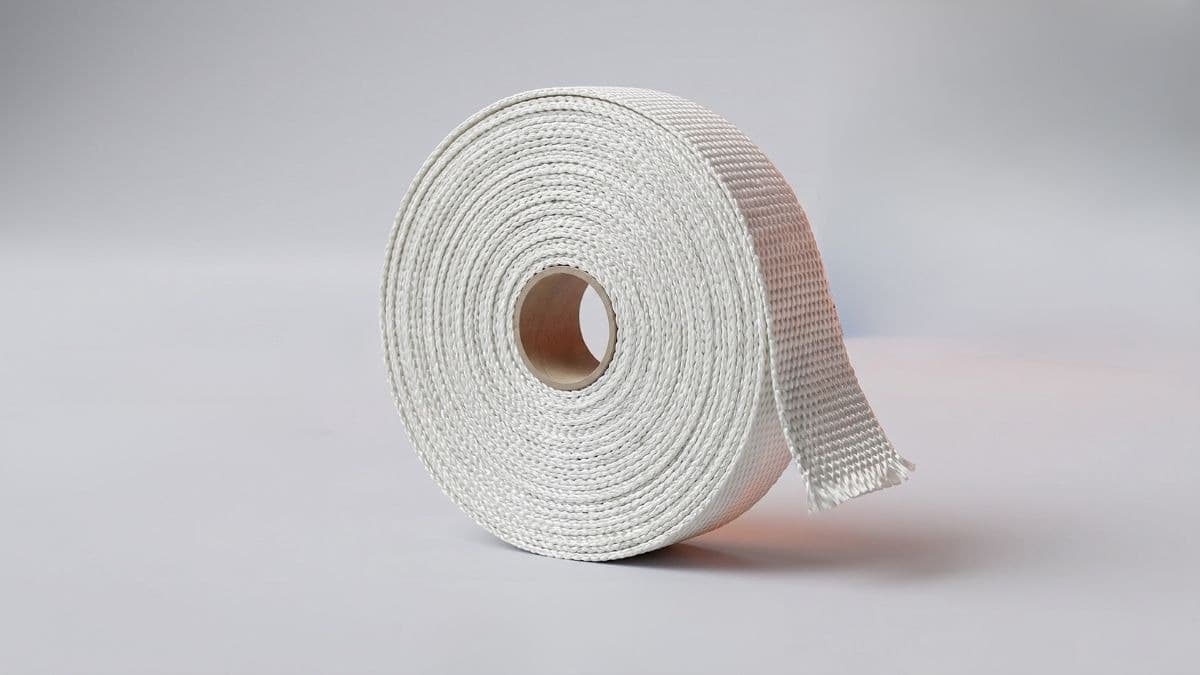

Signature Fiberglass Tape
Fiberglass Tape
Introducing the Fiberglass Tape (DSZFGTP3.0 & DSZFGTP5.0), a premium high-performance insulation tape specially designed for thermal protection, electrical insulation, and high-temperature industrial applications.
Manufactured from twisted strands of fiberglass woven at right angles, this tape provides exceptional durability, strong thermal resistance, and excellent electrical insulation performance. It offers one of the highest glass-to-resin ratios and strength among fiberglass materials.
| Feature | Details |
|---|---|
| Working Temperature | 600°C to 900°C |
| Thickness | 3.0 mm / 5.0 mm |
| Available Width | 25 mm / 50 mm / 75 mm / 100 mm |
| Special Use | Electrical Insulation Applications |
| Additional Thickness | 7 MIL / 10 MIL |
Custom sizes and thickness options available for industrial and electrical insulation applications requiring reliable heat resistance.
Fiberglass Tape (DSZFGTP3.0 & DSZFGTP5.0)
The Fiberglass Tape is a premium high-performance narrow woven cloth strip specially designed for thermal insulation, electrical protection, and extreme temperature industrial applications.
Manufactured from twisted strands of fiberglass woven at right angles, this tape offers outstanding strength, exceptional durability, and one of the highest glass-to-resin ratios among all fiberglass materials. Its structure ensures reliable performance under continuous heat exposure and harsh operating conditions.
Specially woven using low-density yarns, this fiberglass tape is widely used for electrical insulation applications where heat resistance and long-lasting protection are critical.
Technical Specifications
| Specification | Value |
|---|---|
| Product Code | DSZFGTP3.0 / DSZFGTP5.0 |
| Working Temperature | 600°C to 900°C |
| Available Width | 25 mm, 50 mm, 75 mm, 100 mm (Customizable) |
| Thickness | 3.0 mm / 5.0 mm (Customizable) |
| Additional Thickness | 7 MIL / 10 MIL |
| Special Construction | Low Density Yarns for Electrical Insulation |
| Additional Sizes | 50 mm, 75 mm, 100 mm |
Key Benefits
- Excellent thermal resistance for high-temperature environments
- Strong electrical insulation performance
- High mechanical strength and durability
- Reliable protection for wires, motors, and furnace systems
- Flexible and easy to install in industrial applications
- Customizable widths and thicknesses available
- Long service life with minimal maintenance
- Ideal for harsh industrial operating conditions
Applications
- Electrical Insulation on Motor Coils
- Stove Door Seals
- Oven and Stove Insulation
- Blast Furnace Insulation
- Thermal Protection of Electrical Wires
- Exhaust Pipe Wrapping
- Industrial Heat Shielding
- High-Temperature Equipment Protection
