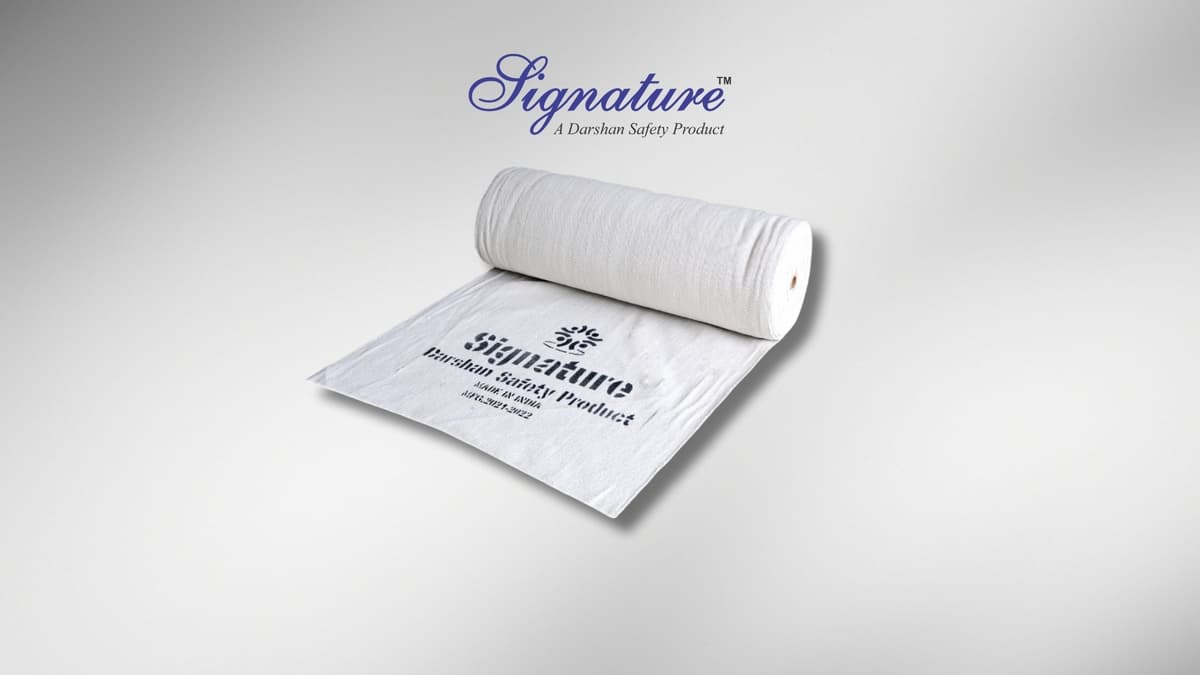

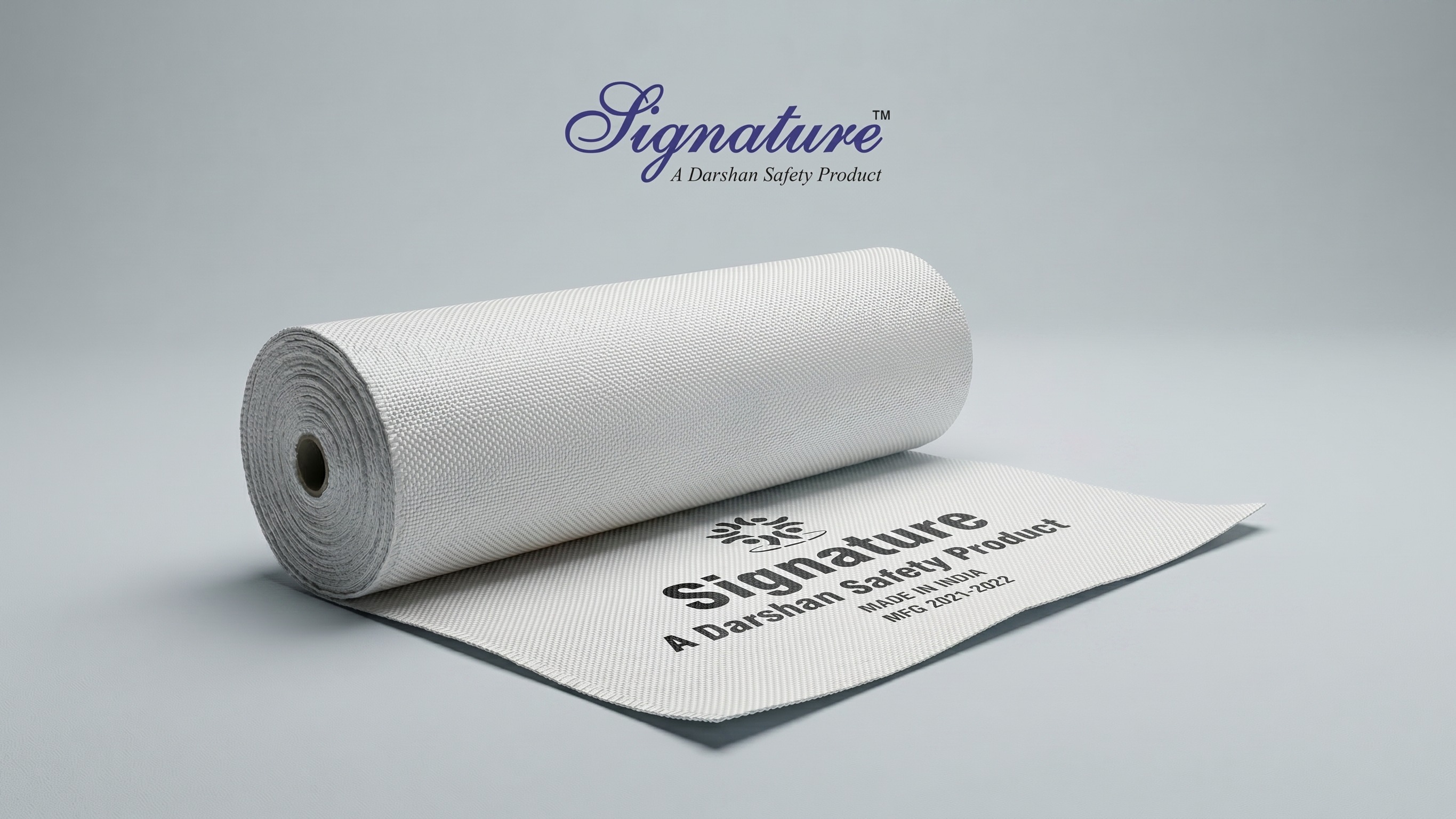

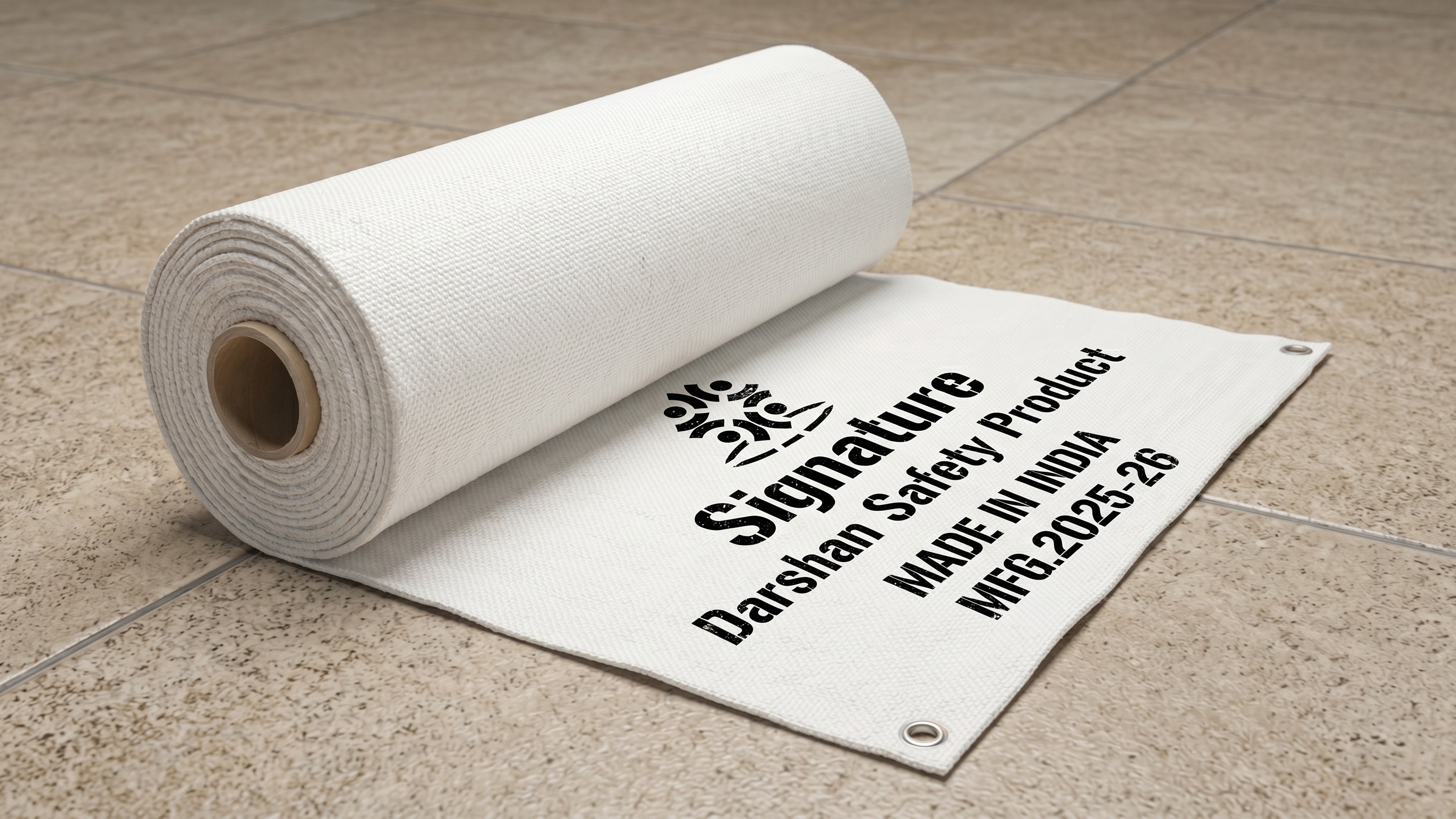

Signature Ceramic Fiber Fabric
Ceramic Fiber Fabric
Introducing the Ceramic Fiber Fabric (DSZCF3.0), a premium high-temperature insulation fabric specially designed for extreme thermal protection, industrial heat shielding, and advanced refractory applications.
Manufactured from high-quality alumina silica fibers and mechanically needled for superior tensile strength and surface integrity, this fabric provides exceptional thermal insulation, flexibility, and long-lasting durability in harsh industrial environments.
| Feature | Details |
|---|---|
| Working Temperature | 1260°C to 1760°C |
| Melting Point | 1760°C |
| Thickness | 2.0 mm / 3.0 mm / 4.0 mm |
| Weight | 1000 GSM / 1500 GSM |
| Reinforcement | SS Metallic Soft Wire |
Ideal for high-temperature applications without deterioration or formation of cristobalite structure. Strong, lightweight, and flexible.
Ceramic Fiber Fabric (DSZCF3.0)
The Signature Ceramic Fiber Fabric is a premium woven high-temperature insulation fabric made from high-quality alumina silica fibers and specially mechanically needled for increased tensile strength and superior surface integrity.
Designed in the form of ceramic fiber yarn, this fabric is strong, lightweight, flexible, and highly durable. It provides exceptional thermal insulation, chemical stability, and reliable performance in extreme industrial heat environments.
Reinforced with fiberglass filament and optional Inconel/alloy steel wire, this fabric is ideal for high-temperature applications without deterioration or formation of cristobalite structure, making it highly suitable for aerospace, power generation, chemical industries, and heavy industrial use.
Technical Specifications
| Specification | Value |
|---|---|
| Product Code | DSZCF3.0 |
| Material | High Quality Alumina Silica Fibers |
| Weave | Plain |
| Available Thickness | 2.0 mm / 3.0 mm / 4.0 mm |
| Weight | 1000 GSM / 1500 GSM |
| Color | White |
| Size | 1 x 30 Meter |
| Reinforcement | SS Metallic Soft Wire |
| Conductive | Yes |
| Working Temperature | 1260°C to 1760°C |
| Melting Point | 1760°C |
Benefits of Ceramic Fiber Fabric
- Unparalleled thermal insulation and chemical stability
- Excellent resistance to thermal shock
- Strong corrosion and abrasion resistance
- Ideal for harsh high-temperature environments
- Steady-state temperature resistance starting from 1260°C
- Short-term exposure tolerance up to 1760°C
- Lightweight, flexible, and durable construction
- No cristobalite structure formation
Applications
- Heat Shields for Aircraft and Spacecraft
- Thermal Protection for Missile Systems
- Power Plant Equipment, Pipes and Ducts
- Reactors, Vessels, Furnaces and Kilns
- Industrial Heat Shields and Thermal Protection
- Battery and Fuel Cell Thermal Management
- Metal Casting and Glass Manufacturing
- Chemical Processing and Petrochemicals
Industry Type
- Aerospace and Defense
- Power Generation and Energy Storage
- Chemical Processing Industries
- Industrial Refractory Applications
- High-Temperature Insulation Systems
