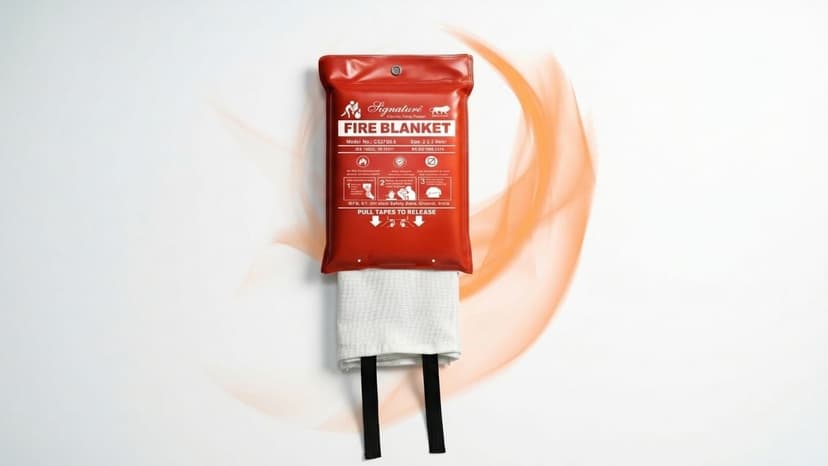

Signature Silicon Fire Blanket
Silicon Coated Fiberglass Fabric
Introducing the Silicon Coated Fiberglass Fabric (DSZSFG0.6), a premium industrial heat-resistant fabric specially designed for thermal insulation, welding protection, fire safety, and high-temperature applications.
Manufactured using high-quality fiberglass fabric with special silicone rubber coating on one or both sides, this fabric provides excellent heat resistance, spark safety, weatherproofing, chemical resistance, and long-lasting durability for demanding industrial environments.
| Feature | Details |
|---|---|
| Working Temperature | -70°C to +650°C |
| Melting Point | 900°C |
| Thickness | 0.4 mm to 3.0 mm |
| Color | Grey / Red / Black |
| Approved Standard | NFPA 701 (A & B) |
Available in single-side and double-side silicon coating options depending on industrial heat protection requirements.
Silicon Coated Fiberglass Fabric (DSZSFG0.6)
The Signature Silicon Coated Fiberglass Fabric is a premium industrial insulation and fire protection fabric designed for extreme temperature applications, welding safety, and high-performance thermal barriers.
Special silicone rubber compounded with advanced formulation is applied on one side or both sides of high-quality fiberglass fabric to deliver excellent heat resistance, spark protection, chemical resistance, abrasion resistance, and weatherproof performance.
Due to its strong flexibility, waterproof performance, and reliable resistance against acids, alkali, and harsh industrial environments, this fabric is widely used across insulation systems, welding blankets, fireproof barriers, and industrial protective covers.
Technical Specifications
| Specification | Value |
|---|---|
| Product Code | DSZSFG0.6 / DSZSSFG1.0 |
| Approved Standard | NFPA 701 (A & B) |
| Weave | Plain / Satin |
| Thickness | 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.2 mm, 2.0 mm, 3.0 mm |
| Color | Grey / Red / Black |
| Size | 1 x 50 Meter |
| Conductive | No |
| Working Temperature | -70°C to +650°C |
| Melting Point | 900°C |
Benefits of Silicon Coating
- Excellent heat resistance for high-temperature applications
- Strong spark safety and welding protection
- Waterproof and weather-resistant properties
- Resistance to chemicals, acids, and alkali
- High abrasion resistance and durability
- Easy maintenance with smooth non-stick surface
- Cost-effective long lifespan solution
- Reliable fire-resistant industrial performance
Single Side vs Double Side Coating
| Parameters | Single Side | Double Side |
|---|---|---|
| Weight | Lighter | Heavier |
| Thickness | Thinner | Thicker |
| Flexibility | More Flexible | Less Flexible |
| Cost | Cost-effective | More Expensive |
| Waterproof | Semi | Full |
| Itching | Yes | No |
| Antistatic | Yes | Yes |
Applications
- Heat Shields
- Welding Blankets
- Fireproof Blankets
- Seals and Gaskets
- High-Temperature Bags
- Insulation Materials for Extreme Temperatures
- Fire-Resistant Barriers
- Reusable Insulation Jackets and Covers
